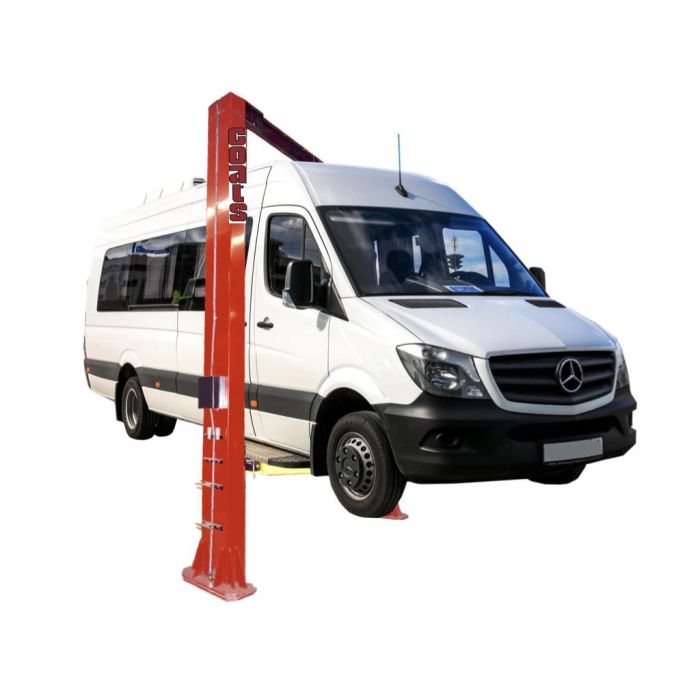

16K 2 POST SYMMETRIC LIFT - RED

Built to higher quality standard;100% North American made - premium US made Monarch (Bucher) 4HP/ 3 kw power unit, 3/8” / 9.5mm non fatigue equalizing cables, 5”/ 127mm steel pulleys and 2”/ 51mm ID Hydraulic Cylinders. Greater flexibility - available in a 16,000 lb./ 7.3T capacity with lighter arms and a lowered pad height of 3-1/2”/ 89mm More working room for larger trucks - 120-1/2 ”/ 3061mm between the inside of the columns and 192-1/2” / 4890mm under the shut off bar. Stronger and more stable structure - single piece columns 15” x 9”/ 381mm x 230mm up to 199-1/4” / 5061mm tall can be custom ordered to fit your building. Large irregular shaped base plate 17” x 31” / 432 x 787mm. Corrosion resistant protection - steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied. Lifts higher to provide more under car work area - the 72’”/ 1829mm long cylinder stroke provides 76” / 1930mm lift without adapters with a maximum attainable lift height of 85-1/2” / 2172mm. Ease of operation - Positive air release mechanical locking system with stainless steel air cylinders. Includes built in air regulator / filter water trap. Power unit can be installed on either side.
