Agricultural and Earthmover Wheel Dolly

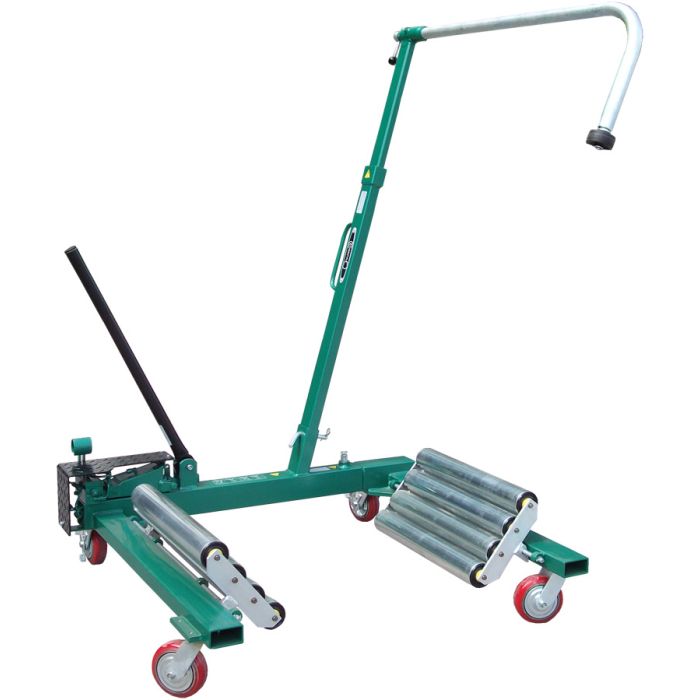

The ESCO Agricultural and Earthmover Wheel Dolly (Model 90538) is a mobile wheel dolly for lifting and lowering large heavy duty wheels/tires from 49 in. to 94.5 in. Easy and safe way to handle and move large tires up to 3,527 lbs. during the tire mounting and demounting process. The unit is operated by moving the foot pedal into the lifting or lowering position and afterwards pumping the pump handle. The tire is mechanically lifted when the rollers press horizontally on each side of the wheel. The easy pump handle will force the rollers closer to each other and lift the load. Positioning the locking telescopic safety arm will secure the tire on the dolly. This prevents the tire from tilting forward, to safely lift and move the tire. Unit features a double acting hydraulic system that allows for safe and controlled hands-free lifting or lowering. Capable of handling large wheels from 45 in. to 94.5 in. diameter, up to 41.3 in. tire depth, with a lifting capacity of 3,527 lbs. Double acting hydraulic system, allowing for a safe controlled hands-free switch between lifting and lowering action Mobile and easy to use outside of workshop Disassembles in a few seconds Tire can be rotated left or right on tiltable roller pads to easily align bolt holes to studs Large 6 in. caster wheels for easy maneuverability
