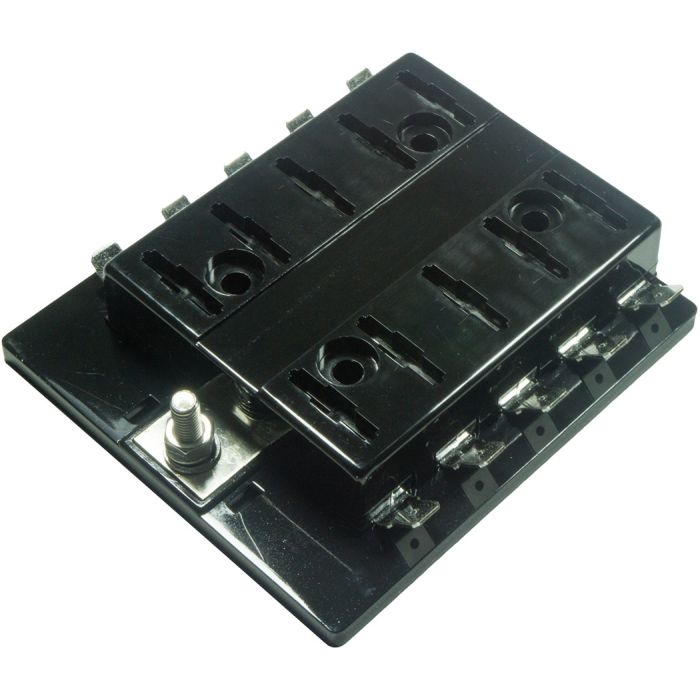

ATO/ATC FUSE PANEL
$22.28
In stock
SKU
NW-720328
10 position ATO/ATC fuse panel w/ cover. Accepts ATO/ATC fuses or plug-in circuit breakers.
#10-32 stud terminal w/ hex nut, flat washer & Lock washer supplied.
1/4 in. spade terminals.
Four .218 diameter mounting holes for #10 screws.
Polycarbonate base and clear polycarbonate cover.
Maximum amperage per circuit: 25 amps, maximum voltage: 32 Volt DC, maximum amperage per block: 150 amps.
Height: 1.10 in.
Width: 3.74 in.
Width: 3.74 in.
