Autel MaxiSys Elite Diagnostic Scan Tablet with FREE MaxiScope MP408 Basic Kit
Autel MaxiSys Elite Diagnostic Scan Tablet with FREE MaxiScope MP408 Basic Kit

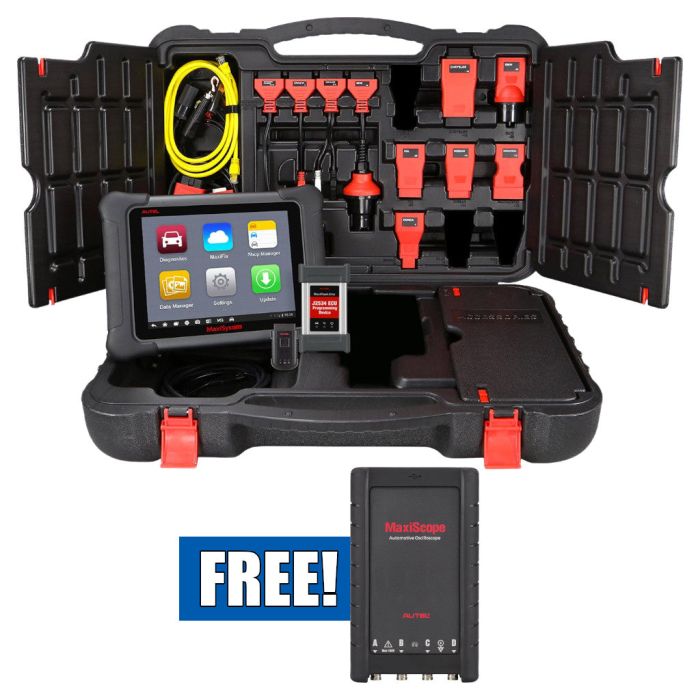

This package includes:
- (1) Autel MaxiSys Elite Diagnostic System Scan Tablet, MaxiFlash Elite J2534, and all necessary cables and adapters with a protective carrying case.
- (1) Autel MaxiScope MP408 Automotive 4-Channel Oscilloscope Basic Kit containing all necessary probes, cables, and leads.
Autel MaxiSys Elite Complete Diagnostic System Scan Tablet
The MaxiSys Elite, the newest addition to the MaxiSys line of highly advanced smart diagnostic tools, is based on the fast and intuitive Android operating system. Powered by NVIDIA���s Tegra 4, the world���s fastest mobile processor, its visually stunning 9.7��� Retina display offers ultra-high resolutions up to 2048x1536 and an optimized array of sophisticated and powerful applications. The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.
Features:
- The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
- Automatic system and software updates with real-time push message notifications via internet
- Instant remote control tech support anytime, anywhere
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
Specifications:
- Operating System: Android 4.4.4 KitKat
- Processor: NVIDIA Tegra4(4-PLUS-1 Quad-core Processor)1.8GHz with ARM Cortex���A15 CPU
- Memory: 2GB RAM&32GB Embedded Memory
- Display: 9.7���Retina display with 2048X1536 resolution & Capacitive touch screen
- Connectivity: 802.11a/b/g/n/ac WIFI, Version 2.1 3Mbs Bluetooth, RJ45 Ethernet Connection, 3.0 USB(2.0 Compatible), HDMI 1.4a, SD Card (Support up to 32GB)
- Rear Camera: 8.0 Megapixel, Autofocus with Flashlight
- Front Camera: 2.0 Megapixel
- Sensors: Ambient Light Sensor, G-sensor
- Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
- Power and Battery: 3.7V/15400mAH Lithium-polymer battery, DC/12V/3A Power Supply
- Input Voltage: DC/12V/3A
- Power Consumption: Max 20W
- Operating Temperature : -10 to+55C
- Storage Temperature: -20 to+70C
- Dimensions (W x H x D): 309 X 225 X 35(mm)
- Weight: 1.59 kg
- Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V
Autel MaxiScope MP408 Automotive 4-Channel Oscilloscope Basic Kit
The MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet (906BT and up), which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle���s electronic circuits. Featuring the user-friendly UI design combined with the unrivaled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.
Features:
- One-click auto setup of voltage scale and time base
- Works on all makes and models of modern vehicles
- Compatible with LIN, CAN and FlexRay data bus standards
- Reads and displays electrical signals in high resolution waveforms
- Allows manual editing of measurement parameter display
- Saves and reviews waveform data
- Features color coded 4-channel control panel
- Intuitive UI design features easy trigger point adjustment and real time scale info display
- Direct power supply through USB connection
- Free online software update through the Internet
- Portable design with strong housing and protective rubber boot
Specifications:
- Vertical resolution: 12 bits
- Channels: 4
- Bandwidth: 20MHz
- Accuracy: 1%
- Sensitivity: 10mV/div to 20V/div
- PC Interface: USB 2.0 ��� Cable supplied
- Power Requirements: Powered from USB port
- Input Ranges (full scale): 50mV to 100V in 11 ranges
- Input Impedance: 1M in parallel with 22pF
- Input Type: Single-ended, BNC connector
- Input Coupling: Software selectable AC/DC
- Overload Protection: 200V on single input
- Buffer Memory: 32M samples shared among active channels
- Waveform Buffer: Up to 1000 waveforms
- Timebase Ranges: 100ns/div to 1000s/div
- Operating Temperature Range: 0C to 50C (15C to 40C for quoted accuracy)
- Storage Temperature Range: -20C to +60C
- Storage Humidity Range: 5% to 95%RH, Non-condensing
- Dimensions: 190 x 115 x 38mm
- Weight: < 0.5kg
- Maximum Sampling Rate (Single Shot): 1 or 2 channels in use 80MS/s, 3 or 4 channels in use 20MS/s
