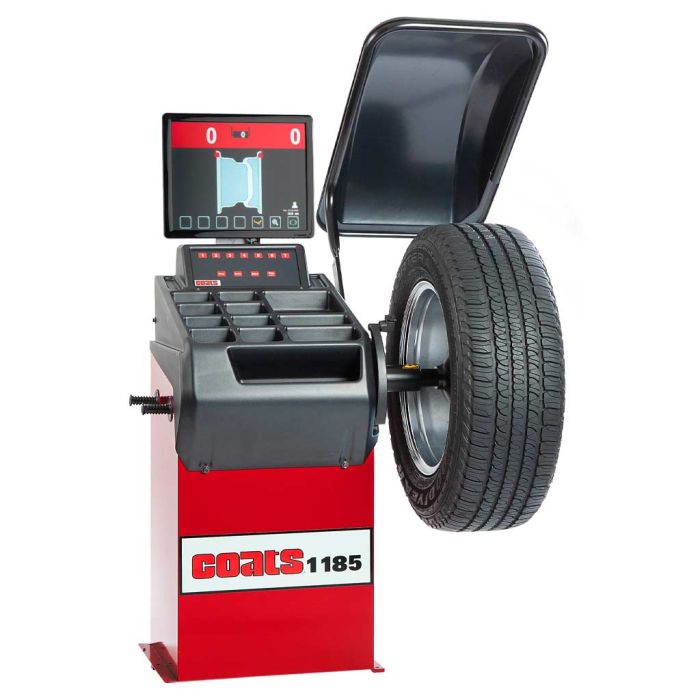

Coats 1185 Compact Space-Saver Wheel Balancer with LCD Video Display
Coats 1185 Compact Space-Saver Wheel Balancer with LCD Video Display
PLEASE NOTE:���Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Need replacement parts? Call or email us and we can special order them for you!
Big-Balancer Features in a Little Package! The Coats 1185 will help take your shop to the next level. This unit is designed for light to medium duty environments, but offers features you will find on much larger, more elaborate machines.
Features:
- Color LCD Video Display
- Bottom Dead Center Laser
- Live Position Indexing Navigation
Laser Line Weight Placement Guidance: Easily visible laser line helps operators place weights right where they are needed.
Color LCD Display: Vivid color display alerts operator to the imbalance location and identifies the optimal tape on or clip weight location.
Live Position Indexing Guidance: Audio and graphics-based notifications alert operator when weight placement is needed.
Included Accessories:
- Coats 8112098 Small A Cone
- Coats 8112099 Medium B Cone
- Coats 8112100 Large C Cone
- Coats 8112101 Light Truck D Cone
- Coats 8113175 Premium Wheel Weight Hammer
- Coats 8309011 Calipers
- Coats 8112103 Hub Nut
- Coats 8112106 Small Pressure Drum w/Ring
- Coats 8112421 Short Cone
Specifications:
| Coats Part Number | 8001185 |
| Balancing Modes |
5 |
| Hidden Weight Mode |
Yes |
| Laser | 6 o'clock bottom center |
| Maximum Assembly Weight |
130 lbs |
| Maximum Tire Width | 20��� |
| Maximum Tire Diameter |
Up to 38��� |
| Maximum Wheel Diameter |
30��� |
| Balancing Speed | Less than 130 rpm |
| Imbalance Resolution | 0.1 oz |
| Shaft Diameter | 40mm (1.57���) |
| Interface |
LCD Video Display with Soft Touch Keys |
| Data Entry |
A & D Arm |
| Auto Brake |
Yes |
| Auto Start |
On Hood Close |
| Electrical Requirements |
110V, 1 ph, 50/60 Hz, 3 amp |
| Footprint |
36.96��� x 39.60��� x 52.32��� |
| Weight |
243 lbs |
| Warranty |
1 Year Parts, 6 Months Labor |
