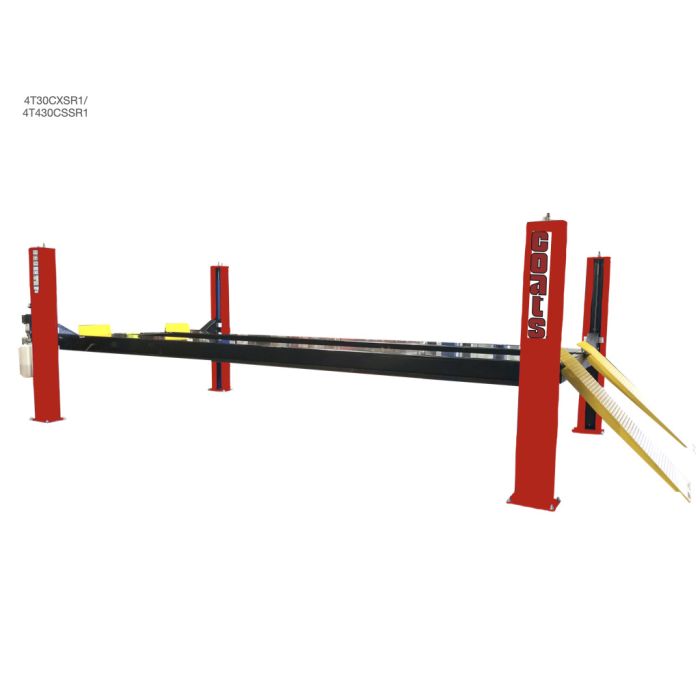

Coats 30K 4 POST GENERAL

Built to higher quality standard;100% North American made - premium US Monarch (Bucher) 4HP / 3kw power unit. Corrosion resistant protection - steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied. Superior structural strength provides longer life - Non flex double wall 24” / 610mm wide runways with built in “Z” rail. Heavy duty 10” x 8-3/8” / 254mm x 213 mm wall columns and 4” x 8”/ 102mm x 204mm tall tube traverse beams. Greater flexibility with more models to chose from - Close between a 30,000lb. / 13.6T or 33,000lb. / 15T version. Available in three (3) runway lengths with service deck or optional with radius plate pockets. Lift can be ordered in red or blue. Premium options and accessories can expand the capabilities and service life - optional front radius plate pockets, built in tire inflation hoses, removable work steps, LED runway lighting and premium 15,000lb. / 6.8T jacking beams. Zirk style grease fittings at all 1 1/2” / 38mm plated hinge pins. Runway under rear slip plates is open to prevent water and dirt collecting. Thirty 7/8” / 22mm enclosed plated steel slip plate balls provide better support with minimal maintenance. Extended Life “Non Twist” Cable design - Machined steel nickel plated 12-3/4” / 324mm pulleys with bronze self-lubricating bushings. Non spin fatigue resistant 5/8”/ 16mm cables are routed on double stacked pulleys (versus four stacked) to reduce stress and wear.
