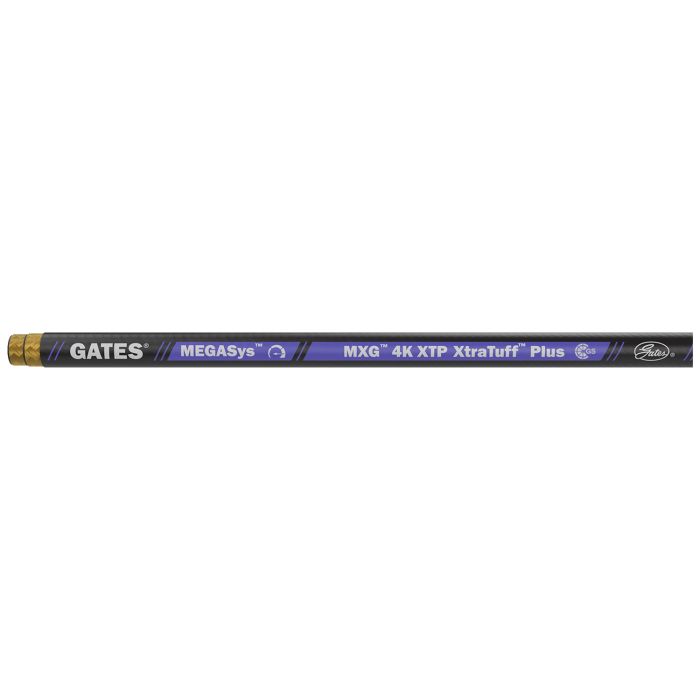

Hydraulic Hose - 12MXG4K-XTPX100FT - MXG 4K Wire Braid Hose - SAE 100R12 - XtraTuff Plus Cover

Built w/ Proprietary Wire-Braid Process Technology, MegaSys MXG 4K XtraTuff Plus Hose is a Drop-In Replacement for Conventional Spiral Hoses. Proprietary Application of Materials Science & Processing Technology. Exceeds All Criteria of ISO 18752, 28DC & SAE 1R12. Exceeds performance criteria of SAE 1R12, EN856 R12, & ISO 3862 R12; size -16 also rated for EN856 4SP. Impulse tested to the same parameters (pressure, temperature and bend radius) as Gates EFG4K spiral hose. Compatible w/ Biodegradable Hydraulic Fluids Like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum Based Fluids. Compact Construction w/ Excellent Flexibility & Lower Force-to-Bend for Faster & More Ergonomic Installation (Force-to-Bend is 4 Percent Better & OD is 9 Percent Smaller). 3 Percent Lighter Weight for Easier Handling & Installation. Gates New XtraTuff Plus Cover Comes Standard on MXG, Providing Abrasion & Ozone Resistance. MXG4K-XTP Passes SAE J1754 Class A Cool-Down Requirements w/ GlobalSpiral Couplings. Meets Flame Resistant Acceptance Designation MSHA 2G.
