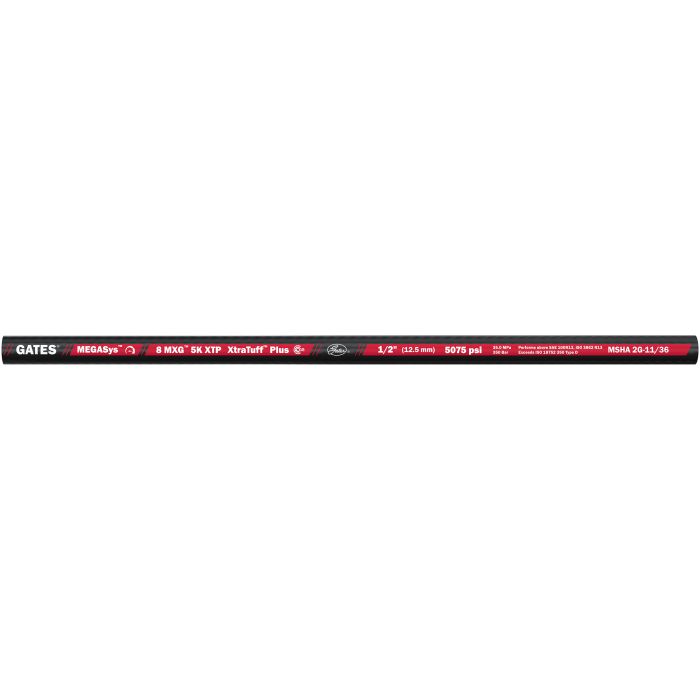

Hydraulic Hose - 8MXG5K-XTPXREEL - MXG 5K Wire Braid Hose - SAE 100R13 - XtraTuff Plus Cover

Built with Gates patented Xpiral™ woven spiral technology, MegaSys™ MXG™ 5K hydraulic hose is lightweight, highly flexible and qualified to ONE MILLION impulse cycles. MXG™ 5K exceeds the performance of wire spiral constructions, but with the lower weight and flexibility driven by Gates materials science technology. The XtraTuff™ Plus cover on MXG™ 5K hose offers 25X the abrasion resistance of standard covers, as well as impressive ozone resistance. MXG™ 5K is 350 bar working pressure or 5075 psi with a temperature range of -40°C to +121°C (-40°F to +250°F). Exceeds performance criteria of ISO 18752 350DC, SAE 100R13, EN856 R13 and ISO 3862 R13; sizes -10, -12 and -16 also rated for EN856 4SP. MXG™ 5K is qualified to 1,000,000 impulse cycles (5000 psi working pressure, 133% test pressure, 250°F/121°C temperature), which exceeds industry standards for longevity in the factory or field. Gates® XtraTuff™ Plus cover comes standard on MXG, providing abrasion and ozone resistance.
