Lincoln LMC Model 100 Heavy Duty Tube Plate Vulcanizer Spotter - Choose 120V or 240V
As low as
$606.09
In stock
SKU
T001-120V-conf
Lincoln LMC Model 100 Heavy Duty Tube Plate Vulcanizer Spotter - Choose 120V or 240V
For large capacity tube repair. Model 150 includes all the features of the Model 100 plus the larger heat unit.
Features:
- Oversize frame allows plenty of room for all applications.
- Snap-type thermostat enables heat unit to reach curing temperatures fast.
- Heavy duty Vulcanizer for repairing all sizes of inner tubes and installing valve stems.
- Detachable flat plate for vulcanizing valve stems.
- Available in 120V or 240V
Specifications:
- Shipping Weight: 45 lbs (20 kg)
- Curing Head Size: 4� x 6� (10 x 15 cm)
- Number of Curing Heads: 1 each
- Throat Depth: 9� (23 cm)

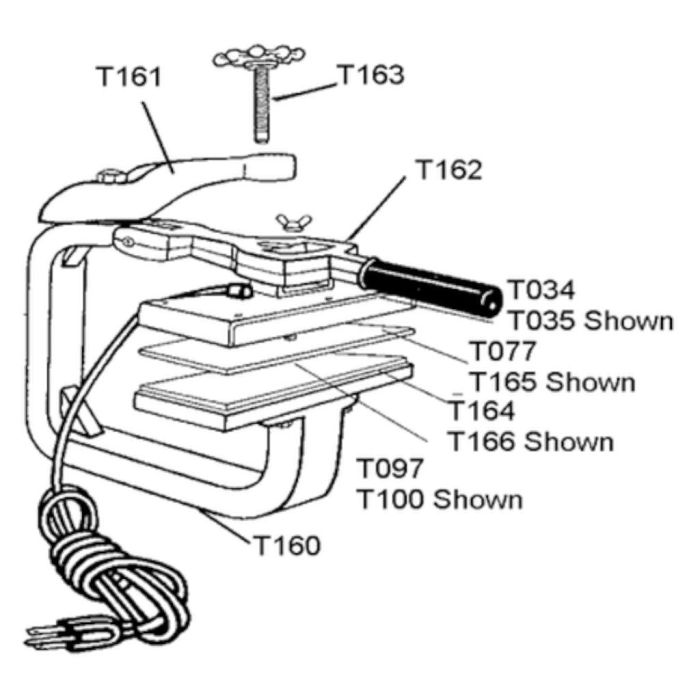

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts.�See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
| Part Number | Model | Description |
| T034 | 6 | Heat unit |
| T077 | 20 | Plate for heat unit |
| T097 | RP-1 | Rubber Pad |
| T160 | 2 | Frame |
| T161 | 3 | Pressure arm |
| T162 | 24 | Handle |
| T163 | 27 | Hand-wheel screw |
| T164 | S-5 | Rubber pad plate |
| T146 | Thermostat for 4� x 6� heat unit | |
| T127 | Element for 4� x 6� heat unit | |
| T122 | Electrical Cord |
