Lincoln LMC Model 1400 Flexible Contour Tractor Truck Air Vulcanizer Spotter - Choose 120V or 240V

$1,342.34
In stock
SKU
T018-240V

Lincoln LMC Model 1400 Flexible Contour Tractor Truck Air Vulcanizer Spotter - Choose 120V or 240V

Features:

  • Air regulated pressure takes guess work out of how much pressure to apply.
  • Flexible silicone rubber heat pads conforms to tire contour.
  • Capable of curing a 3-1/2" spot or section in one cure.
  • Can be used in multiple cure fashions to make repairs larger than 3-1/2".
  • Controlled temperature 4" diameter heat pad conforms to tire contour and applies even pressure over entire repair area.
  • Not an airbag- this is a flexible silicone rubber heat pad contained in a cylinder and driven by air pressure.
  • Long life silicone rubber heat pad (1000+ hours).
  • Frame mounted air regulator set to operate at 65 pounds psi assures adequate, even pressure throughout cure cycle. Regulator protected by rugged frame bracket.
  • The perfect spotter for large tractor and small off-road tires and also makes excellent truck repairs.
  • Available in 120V or 240V.

Specifications:

  • Shipping Weight: 36 lbs (16 kg)
  • Throat Height: 16��� (41 cm)
  • Throat Depth: 14-1/2��� (37 cm)

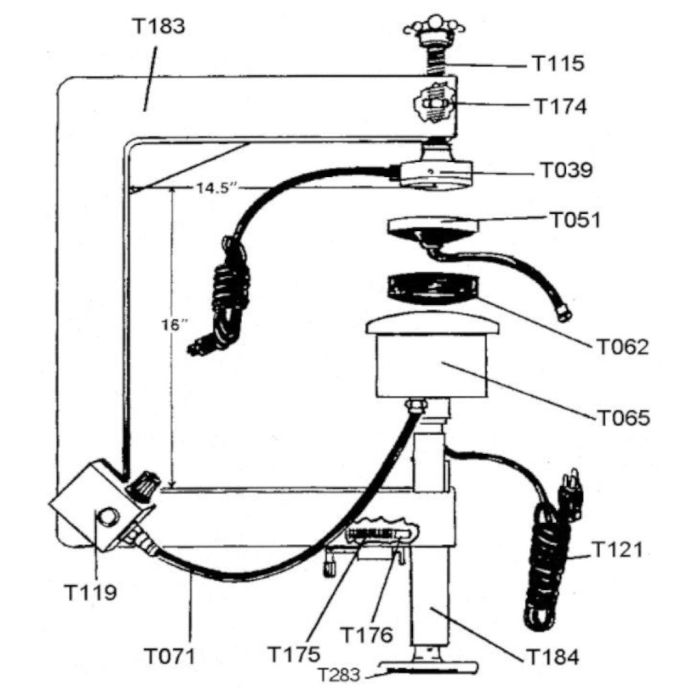

                Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.

                Parts Breakdown:

                Part Number Model Description
                T183
                Frame
                T039 34 Upper swivel heat unit 3-5/16��� diameter (specify 120V or 240V)
                T051 AS4-14 Silicone heat pad 4��� diameter with electrical
                T062 AS-5-4 Silicone air seal
                T065 AS-6 Steel air cylinder
                T184 AT-7 Telescoping pressure screw assembly (lower)
                T119 AT-9 Air regulator (preset to 65 pounds)
                T120 AS-9B Gauge for regulator
                T071 AS-10B Air hose from regulator to cylinder
                T121 AS-11 Detachable electric cord for heat pad
                T115
                Hand-wheel adjusting screw (upper)
                T174 1006 Nut for adjusting screw
                T175 1008 Compression spring
                T123 1009 Fiber rod
                T124 Thermostat for 3��� heat unit
                T283 Telescoping handle
                T122 Electrical cord
