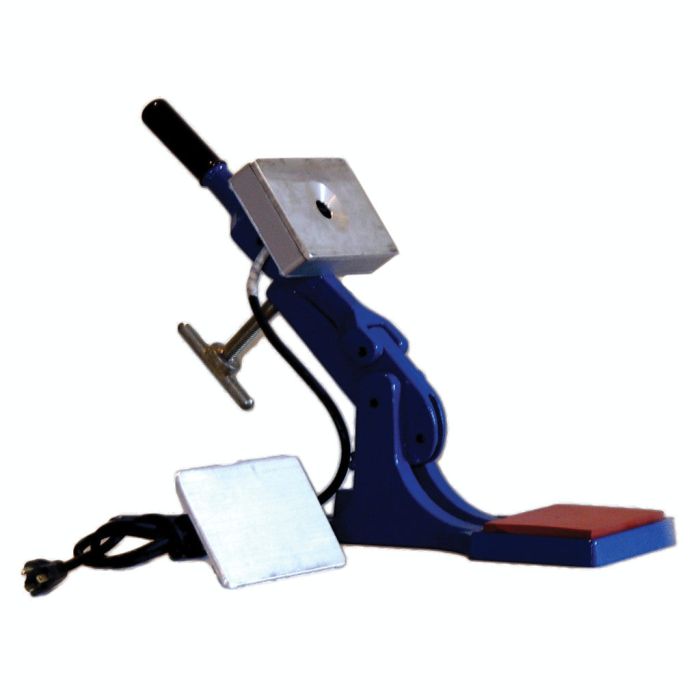

Lincoln LMC Model 200 Tube Plate Vulcanizer Spotter - Choose 120V or 240V
As low as
$436.04
In stock
SKU
T003-120V-conf
Lincoln LMC Model 200 Tube Plate Vulcanizer Spotter - Choose 120V or 240V
Features:
- The economical tube repair option.
- This tube plate will make a better repair on the most common sizes of tubes at a lower cost than any other method.
- Heat unit with snap-type thermostat reaches curing temperature fast.
- Detachable flat plate for vulcanizing valve stems.
- Available in 120V or 240V.
Specifications:
- Shipping Weight: 27 lbs (12 kg)
- Curing Head Size: 4� x 6� (10 x 15 cm)
- Number of Curing Heads: 1 each
- Throat Depth: 6� (15 cm)
Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
| Part Number | Model | Description |
| T036 | 26 | Heat unit |
| T077 | 20 | Plate for heat unit |
| T098 | RP-2 | Rubber pad |
| T162 | 24 | Handle |
| T163 | 27 | Hand-wheel screw |
| T167 | 21 | Frame |
| T168 | 22 | Trigger |
| T169 | 23 | Pressure arm |
| T146 | Thermostat for 4� x 6� heat unit | |
| T127 | Element for 4� x 6� heat unit | |
| T122 | Electrical cord |
