Lincoln LMC Model 2000 Air-Operated Truck Tire Vulcanizer Spotter - Choose 120V or 240V

$2,645.74
In stock
SKU
T026-240V

Lincoln LMC Model 2000 Air-Operated Truck Tire Vulcanizer Spotter - Choose 120V or 240V

Features:

  • Only spotter in the market that handles tread, shoulder and sidewall repairs on all tires from low profile to super singles.
  • Will handle future tire sizes simply by changing contour plates.
  • Patented piston/pad system for expert repairs.
  • Inside-outside heat system.
  • Spring-loaded mechanical pressure, with solid heat units.
  • No expensive airbags to replace (average of less than 30 cents per cure).
  • Optional large-capacity Model TS stand (T033) supports both tire and vulcanizer with dual 16" rollers for easy tire rotation.
  • Optional plate package (T156) contains 9 plates.
  • Available in 120V or 240V.

Specifications:

  • Shipping Weight: 74 lbs (34 kg)
  • Curing Head Size: 6��� (15 cm)
  • Number of Curing Heads: 3 each
  • Throat Height: 24-1/2��� (62 cm)
  • Throat Depth: 11-1/2��� (29 cm)

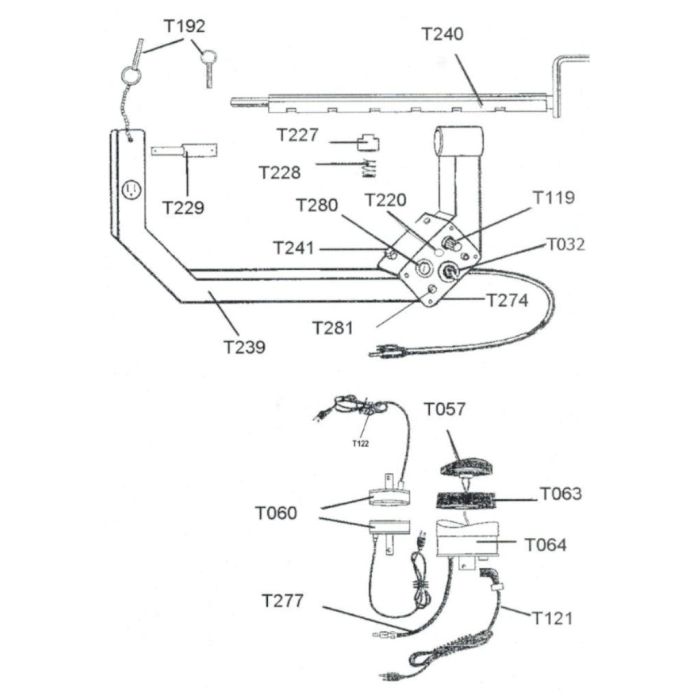

                  Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.

                  Parts Breakdown:

                  Part Number Model Description
                  T057 AS4-16 Contoured silicone heat pad 6��� diameter with electrical
                  T060 AS3-20 Solid heat units
                  T063 AS5-6 Silicone���air seal���6��� diameter
                  T064 AS6-20 Steel air cylinder with contoured lip
                  T121 AS11 Detachable electrical cord for T057
                  T032
                  1 Hour timer
                  T156
                  Contour plate set
                  T192
                  Detent pin
                  T227
                  Plunger
                  T228
                  Spring
                  T229
                  Extension shaft
                  T239
                  Frame
                  T240
                  Telescoping assembly
                  T277 Air hose with 2 fittings
                  T119 AS9 Air regulator
                  T220
                  Pilot light
                  T277 Air hose with fitting
                  T274 Humphrey valve
                  T280 Panel mount air gauge
                  T281 Circuit breaker
                  T145 Thermostat for 4��� heat unit
                  T125 Element for 4��� heat unit
                  T122 Electrical cord
                  T241 Quick disconnect
