Lincoln LMC Model 500 Tractor Tire Vulcanizer Spotter - Choose 120V or 240V
$449.34
In stock
SKU
T009-240V
Lincoln LMC Model 500 Tractor Tire Vulcanizer Spotter - Choose 120V or 240V
Features:
- Repairs injuries and cures plug in tractor tires to 13:00 cross section.
- Inside-Outside heat units substantially reduce curing times.
- Independently operating thermostatically controlled heat units reach and maintain curing temperature quickly and efficiently.
- Available in 120V or 240V.
Specifications:
- Shipping Weight: 22 lbs (10 kg)
- Curing Heads: 3-5/16��� (9 cm)
- Number of Curing Heads: 2
- Throat Height: 14-1/2��� (37 cm)
- Throat Depth: 9��� (23 cm)

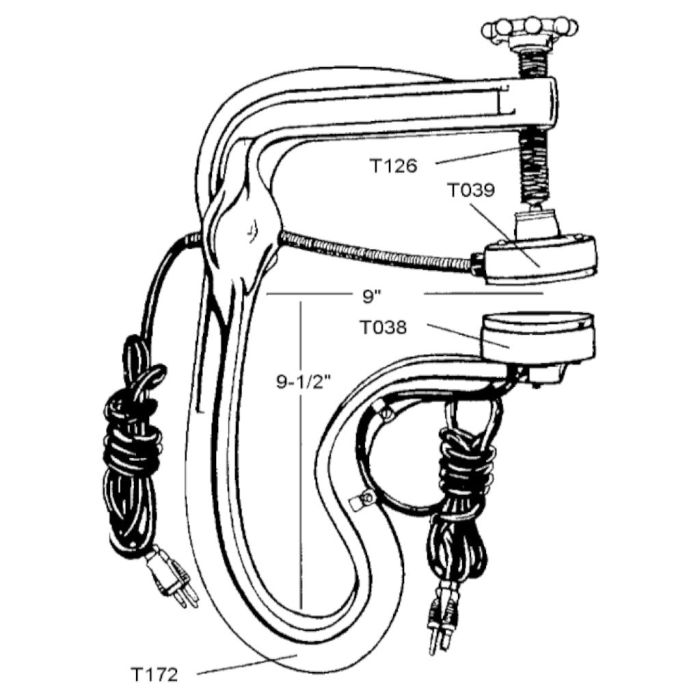

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
| Part Number | Model | Description |
| T172 | 51 | Frame |
| T039 | 43 | Upper (swivel) heat unit (specify 120V or 240V) |
| T038 | 34 | Lower heat unit (specify 120V or 240V) |
| T126 | 56 | Hand-wheel and pressure screw |
| T123 | Thermostat for 3��� heat unit | |
| T124 | Element for 3��� heat unit (specify 120V or 240V) | |
| T122 | Electrical cord |
