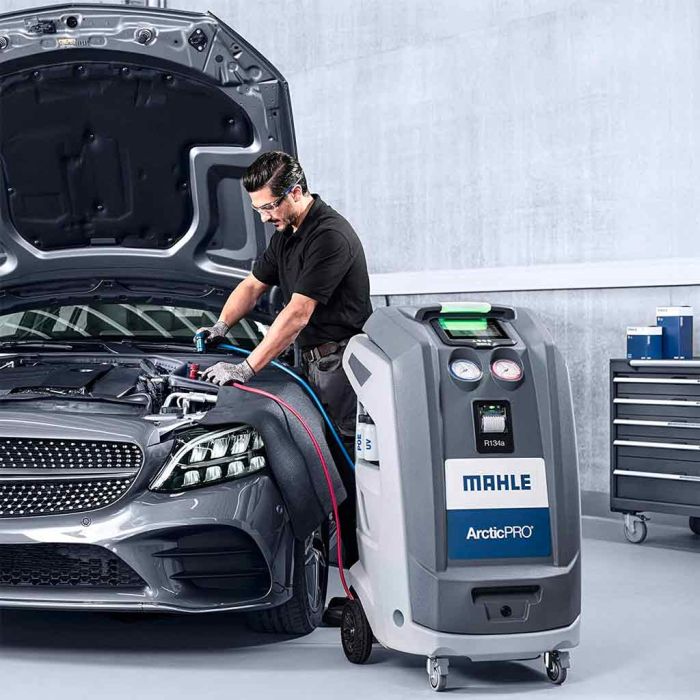

Mahle ACX2180 ArcticPRO R134a Refrigerant Handling System Air Conditioning A/C Machine
$4,559.05
In stock
SKU
460804470
Mahle ACX2180 ArcticPRO R134a Refrigerant Handling System Air Conditioning A/C Machine
PLEASE NOTE:���Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
If you're looking for a machine built for performance, look to the high-performance, fully automatic ArcticPRO ACX2180 A/C machine. This new high-performance unit is fully automatic and able to run practically unattended. Each unit was designed with an ergonomic, convenient service door and an intuitive, state of the art user interface to provide an optimal environment for effortless A/C service and simple unit maintenance. For a streamlined shop, and safe and precise A/C refrigerant handling, rely on ArcticPRO.
Features:
- State-of-the-art ergonomic design, 7��� capacitive touch LCD display, and intuitive user interface sets a new industry standard
- Contains three transducers, providing reduced process times over dual sensor units
- LED light indicates status visible from anywhere in the workshop
- iOS and Android capable phone app allowing remote service session mirroring and advanced functions
- Best-in-class serviceability with a new ergonomic hinged service door simplifies unit service
- Permanent wireless automatic software updates, ensuring you always have the latest features
- Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service and allows two oil types for injection
- Integrated UV dye injection provides high level of A/C system leak detection
- Remote support for technicians allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support
- Data management and reporting metrics offers the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more
- Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage
- Retain valuable service records, network printing capability to print services provided for customer
Specifications:
Technical Data | Model Number ACX2180 |
Mahle Part Number |
460 80447 00 |
Certifications |
SAE J2788, SAE J2099, UL 1963 |
Charge Performance |
0.5 oz at 70F to 75F (15g at 21C to 24C) |
Recovery Performance |
95% at 70F to 75F (21C to 24C) within 30 minutes |
Operation |
Fully Automatic |
Charging Cylinder |
30 lbs (13.6 kg) DOT |
Compressor |
3/8 HP, 0.279 kW |
Dimensions |
47��� x 29��� x 29��� (119 cm x 74 cm x 74 cm) |
Weight |
215 lbs (98 kg) |
Display |
Color, 7��� Capacitive Touch Screen |
Filter Drier Capacity |
150 lbs (68 kg) Spin-On Type |
Hoses |
9��� (2.75 m) |
Hybrid Function |
ACX2180H Only |
Languages |
English, French, Spanish |
Operating Ranges |
50F to 122F (10C to 50C) |
Power Source |
120 VAC, 60 Hz, 12 Amp |
Printer |
Optional |
Vacuum Pump | 2���CFM Dual Stage |
Warranty | 1 Year Labor, 2 Years Parts |
WARNING: Cancer and Reproductive Harm -���www.P65Warnings.ca.gov.
