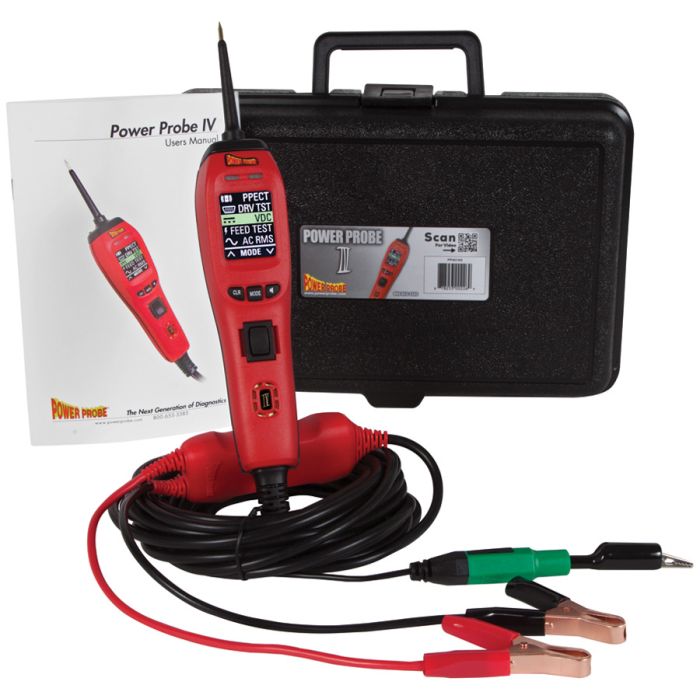

Power Probe IV Multi Meter

Gold plated 4 mm banana jack. Easy to read LCD display in direct sunlight. Large color LCD screen with easy to navigate user menu. Power Probe IV diagnostic electronic circuit and component tester supplies battery power and ground. Featuring AC/DC voltmeter, ohmmeter, frequency, pulsewidth (positive & negative) and additional diagnostic modes: fuel injector tester, PCM/ECM driver tester and ECT2000 Signal Tracer (sold separately). Supplies power and ground for functional component testing. Fuel injector tester for easy circuit diagnosis. Digital volt and ohmmeter for circuit testing. AC-RMS, AC Peak-To-Peak, Frequency and pulse width for signal testing. PCM/ECM driver supplies safe voltage for testing computer driver circuits. 23' batter power supply cable length. Bright white LEDs flashlight for increased visibility. Self-resetting and replaceable circuit breaker. Ergonomic handle design. Blow mold case, with double molded CATIV test leads, water proofing plugs and temperature probe included. Features 10 Amp test range with 20 Amp max limited to 30 second use. DMM features MAX/MIN, relative change, data hold, range select, mode select and auto power-off (15 min). Auto-ranging and defaults to mV. Measures DC / AC Volts, DC / AC Amps, Ohms, Capacitance, Frequency Hz, Duty Cycle, Temperature F/C, Diodes and Audible Continuity. 4,000 count LCD display with white LED backlighting.
