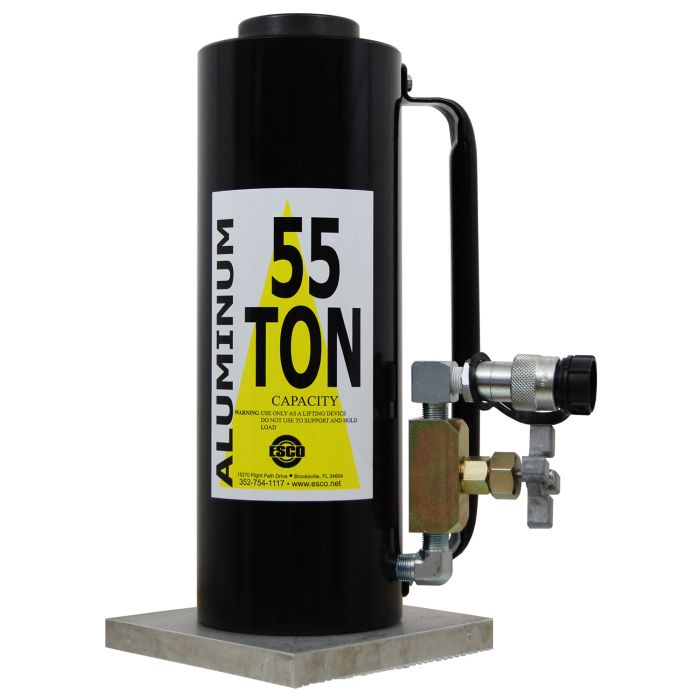

Pro Series 55 Ton High Lift Hydraulic Cylinder Jack

The ESCO Pro Series 55 Ton High Lift Hydraulic Cylinder Jack (Model 10314) works to lift loads up to 110,000 lbs. This single acting spring loaded hydraulic cylinder is designed to be compact and lightweight for easy positioning with attached handle. Unit includes shut-off valve which allows the pump to be disconnected while the ram is extended. All units include new advanced stop rings and wipers for improved stability and piston rod support which will help to reduce point loading and internal contamination. For use with any 10,000 psi hydraulic pump Ships completely assembled with valve, high flow quick connect coupler and 8 in. x 8 in. base plate Heavy duty 11/16 in. thick cylinder wall 55 ton capacity Minimum height 16 in. Maximum height 26 in.
