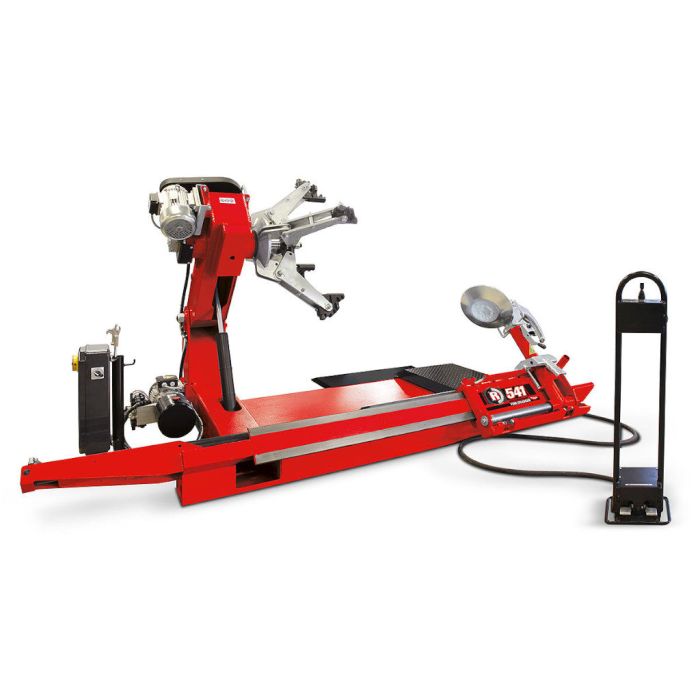

Rotary R541 Commercial HD Heavy Duty Truck Tire Changer
$19,493.05
In stock
SKU
R541
Rotary R541 Commercial HD Heavy Duty Truck Tire Changer
PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.
PLEASE NOTE:���Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The dimensions and work strokes ensure maximum efficiency for an entire range of tires. The two-speed rotation chucking table can accommodate rims up to 44��� and 56��� (with the VSG108A12 extensions set). With leverless action, the tool operates between bead and rim, pulls up the bead, and demounts the tire.
- Leverless
- Single Carriage Movement
- Electro-hydraulic Changer For Trucks, Agricultural, And Earthmoving Vehicles
- Service Tire Diameters Up to 90���
- Made in Italy
Features:
- Leverless operation for tube and tubeless tires.
- Hydraulic arm movement.
- Wired cable control unit.
- Rotational control on portable wired stand.
- Double ratcheting locking arm.
- Double speed for chucking table rotation.
- Aluminum adapters standard.
- Patented VSG108A3 bead lever.
- Tire paste lubricant and brush.
Warranty: 3 years on parts, 1 year on labor
Specifications:
| TECHNICAL DATA��� | R541 |
| Chucking unit rotation motor | 1.75 Hp / 1 - 1.3 kW |
| Hydraulic drive unit motor | 2.95 Hp / 2.2 kW |
| Rim diameter | 11��� - 43��� |
| Rim diameter with VSGA108A12 adapters | 44��� - 56��� |
| Maximum tire diameter | 90.5��� (2,300 mm) |
| Maximum tire width | 51��� (1,300 mm) |
| Chuck rotation speed (rev/min) | 4 - 8 |
| Power supply | 220v / 3��� / 60 Hz |
Compliance and Restrictions
WARNING: Cancer and Reproductive Harm -���www.P65Warnings.ca.gov.
