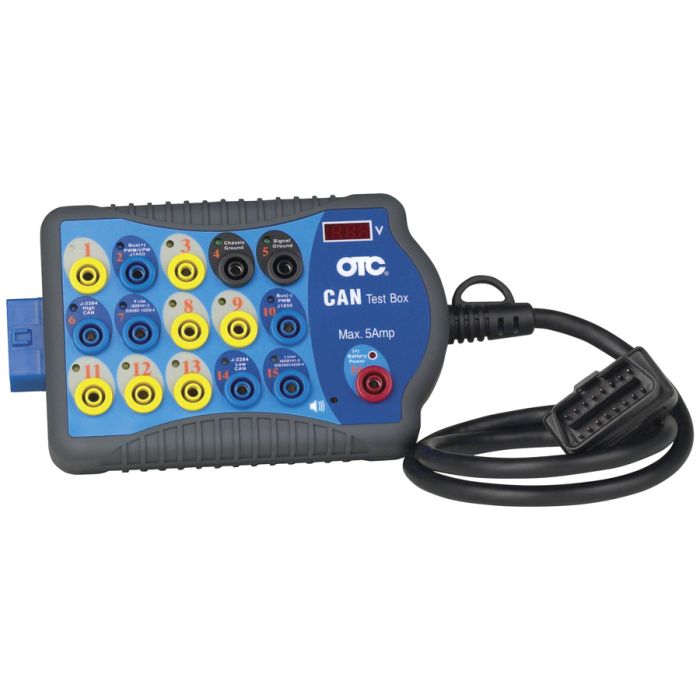

Scan Tool / Breakout Box OBDII / CAN BreakOut Box Owatonna Tool Company

Use This Tool For Diagnosing Electrical Faults & Can Bus Line Activity. Check Power & Ground Circuits, Check Active Protocol Lines, Or Connect A Multimeter Or Oscilloscope For Detailed Signal Analysis. Connects Between Diagnostic Link Connector (DLC) & Scan Tool. Detects Data & Protocol Communication. Monitors System Voltage Display & High/ Low Alarm. Connect Leads For Increased Diagnosis, Analysis & Monitoring. Verify ECU Activity, Monitoring Of OBD II Data Lines, Probe Lines w/ Scope Or Multimeter For Detailed Signal Information, Check & Monitor Battery Voltage w/ Continuous Numeric Display Or Voltage. Alarm Warning When Voltage Drops Below 11.6 Volt DC Or Rises Above 15.2 Volt DC. 3-Digit LED (Resolution: .1 V). 16 Outputs × 4 MM Diameter w/ LED Lamp Indications. Up To 5 Amp Output. 7 Detected Protocols - PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN bus (J-2284)
